Unrestricted for throughput
Few analysis equipments required and suitable for the scenes with different sample sizes.

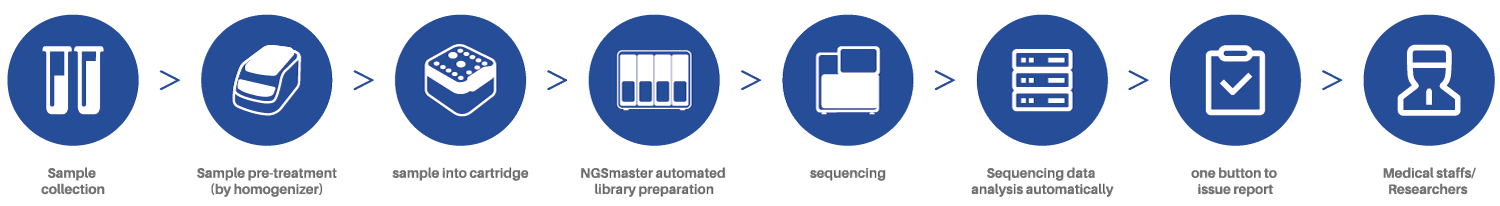

Process
Purchase information
Product name | Model/Specification | Item No. |
Automated Library Preparation Instrument | NGSmaster Pure | MAR002 |
Microbial homogenizer | BioPrep-6 | AS-13020-00 |
Microbial genome Data Analysis software | Gente llix | MS001 |
Single channel automated library preparation instrument | NGSmaster Pure-Lite | MAR002-Lite |
SARS-CoV-2 Nucleic acid detection | 48 人份 | MD029 |
kit (Reversible terminator sequencing) | ||
NGS Library quantification kit | 500 人份/1000 人份 | MD008-P1/P2 |
Constant temperature CRISPR method
Introduction

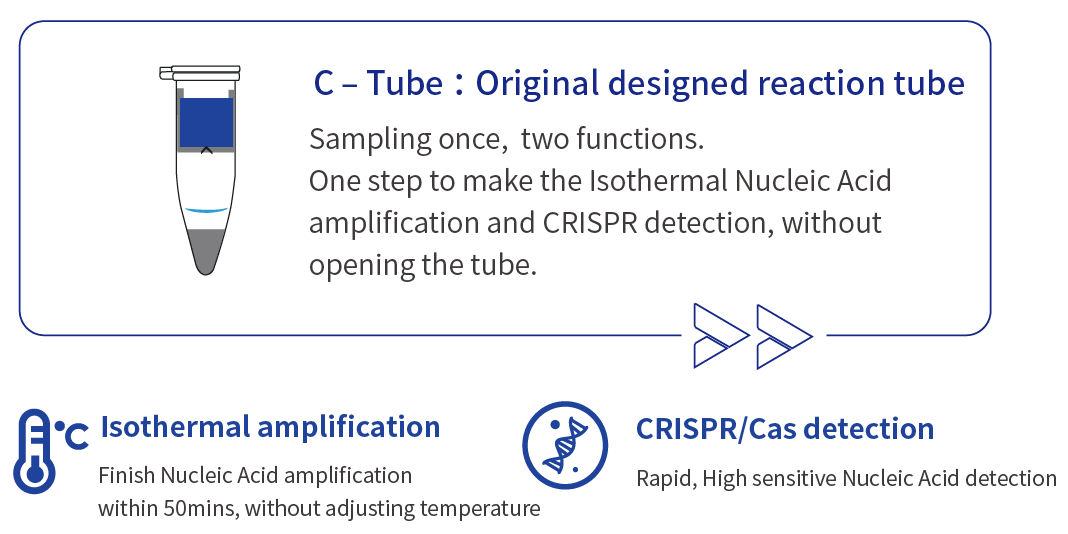

The product consist of Nucleic Acid amplification analyzer and SARS-CoV-2 Nucleic Acid Detection Kit(Constant temperature CRISPR method)
Application Scenes
Hospitals without PCR lab, Laboratory medicine room (verify the positive samples), Emergency room(in hospital screening), School, Airport, Customs.
Advantages
Operating procedures
Technical Parameter
Analyzer | |
Sample size | 0.2ml ‒ 8wells strip |
Screen | 7 inch touch screen |
Interpretation methods | 1. Build amplification curve to get results. 2. The analyzer gets results automatically. |
temperature uniformity(℃) | Within ±1 |
Temperature accuracy / control accuracy(℃) | ≤0.5℃ |
Hot lid function | available |
Fluorescence intensity detection repeatability | cv≤3% |
Fluorescence intensity detection precision | cv≤5% |
Fluorescence linear regression coefficient | ≥0.99 |
Size(W*D*H) | 145*305*100 mm |
Net Weight | 2.3kg |
Reagent | |
Sensitivity | 100 copies/mL |
Specificity | no obvious cross-reactivity for common respiratory viruses, respiratory pathogenic bacteria and human swab samples. |
Purchase Information
Product name | Specifications | Item No. |
2019-nCoV Nucleic Acid Detection Kit ( CRISPR-based Nucleic Acid Detection) | 50tests/box | MD027-P1 |
Nucleic Acid amplification analyzer | FMS-800M | MAR007 |
